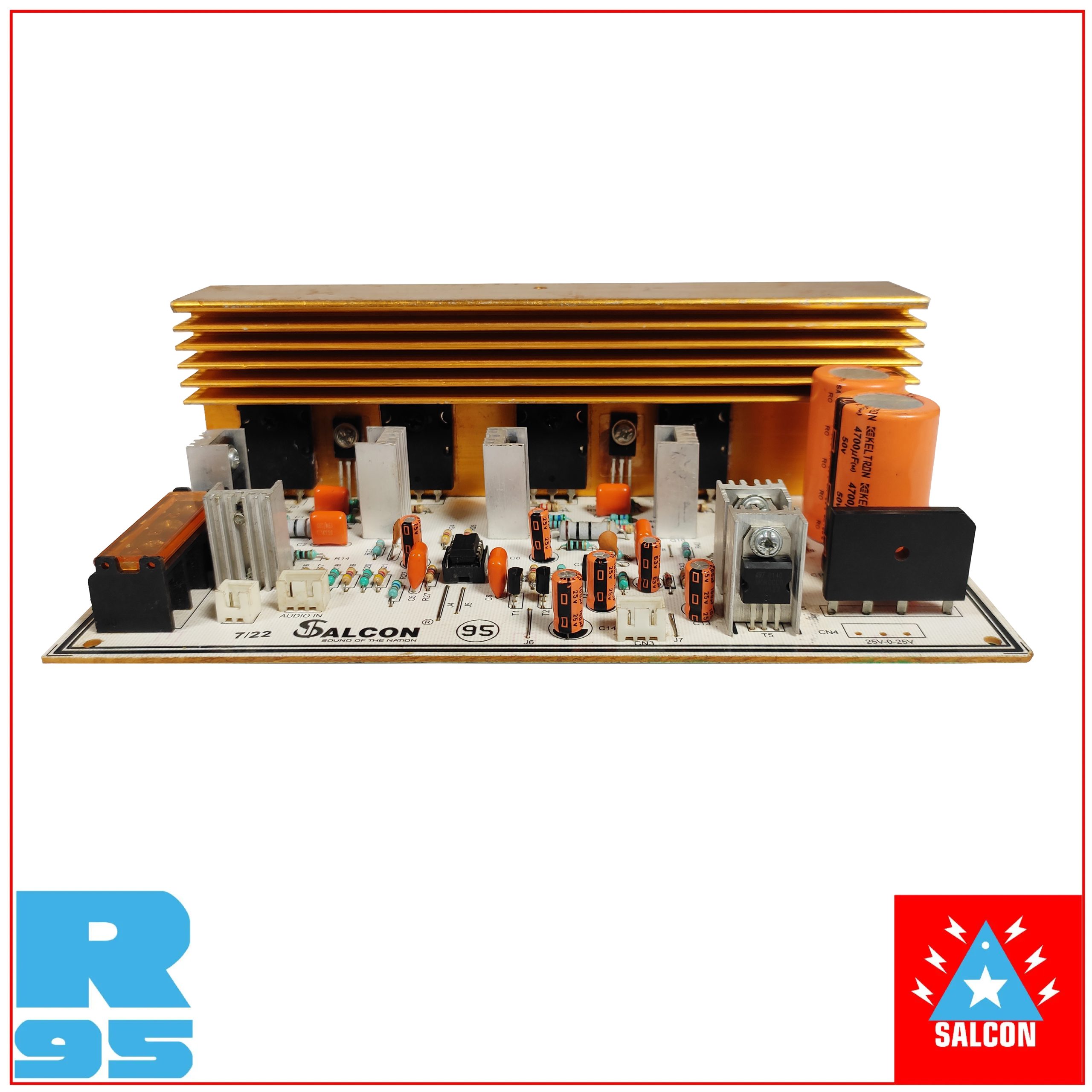

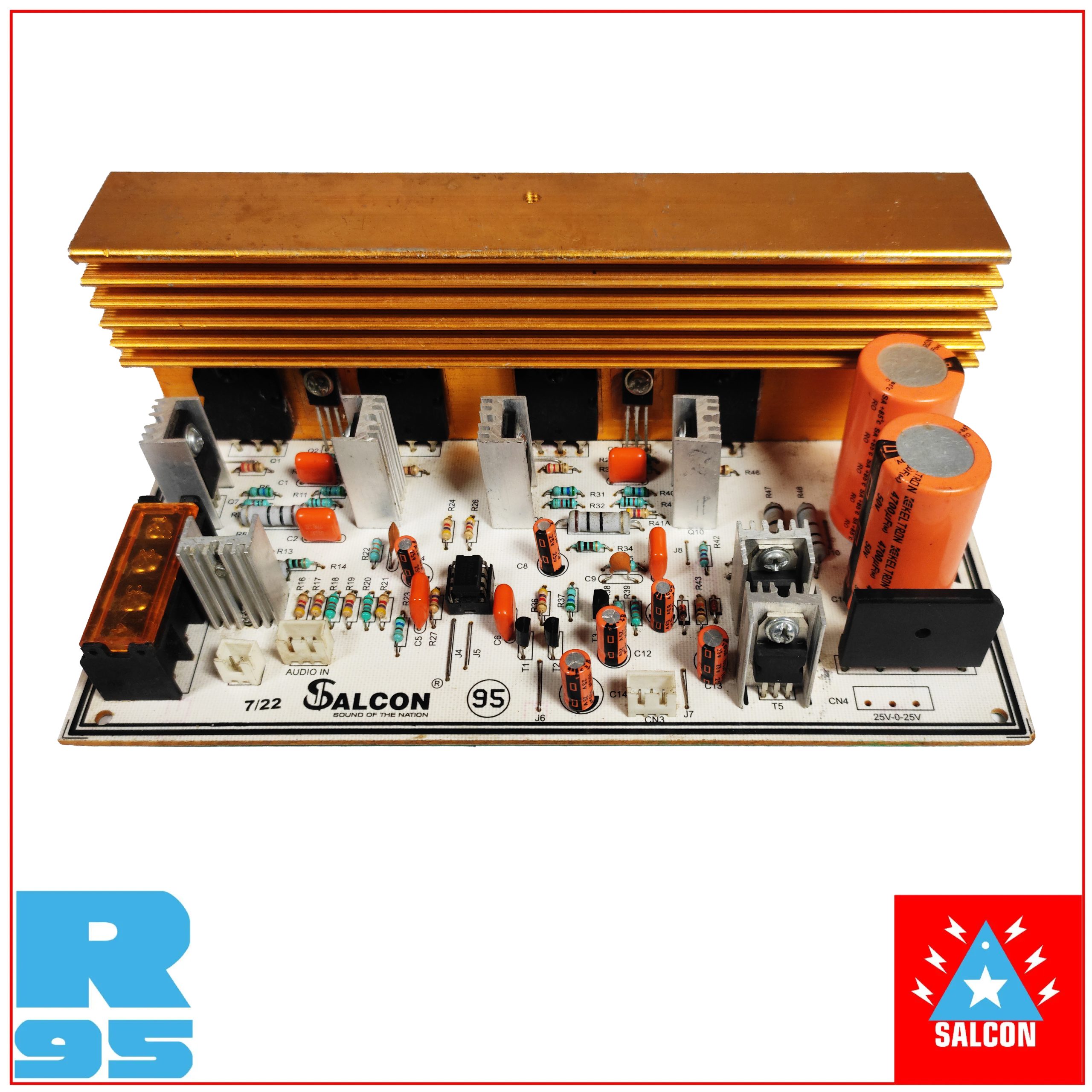

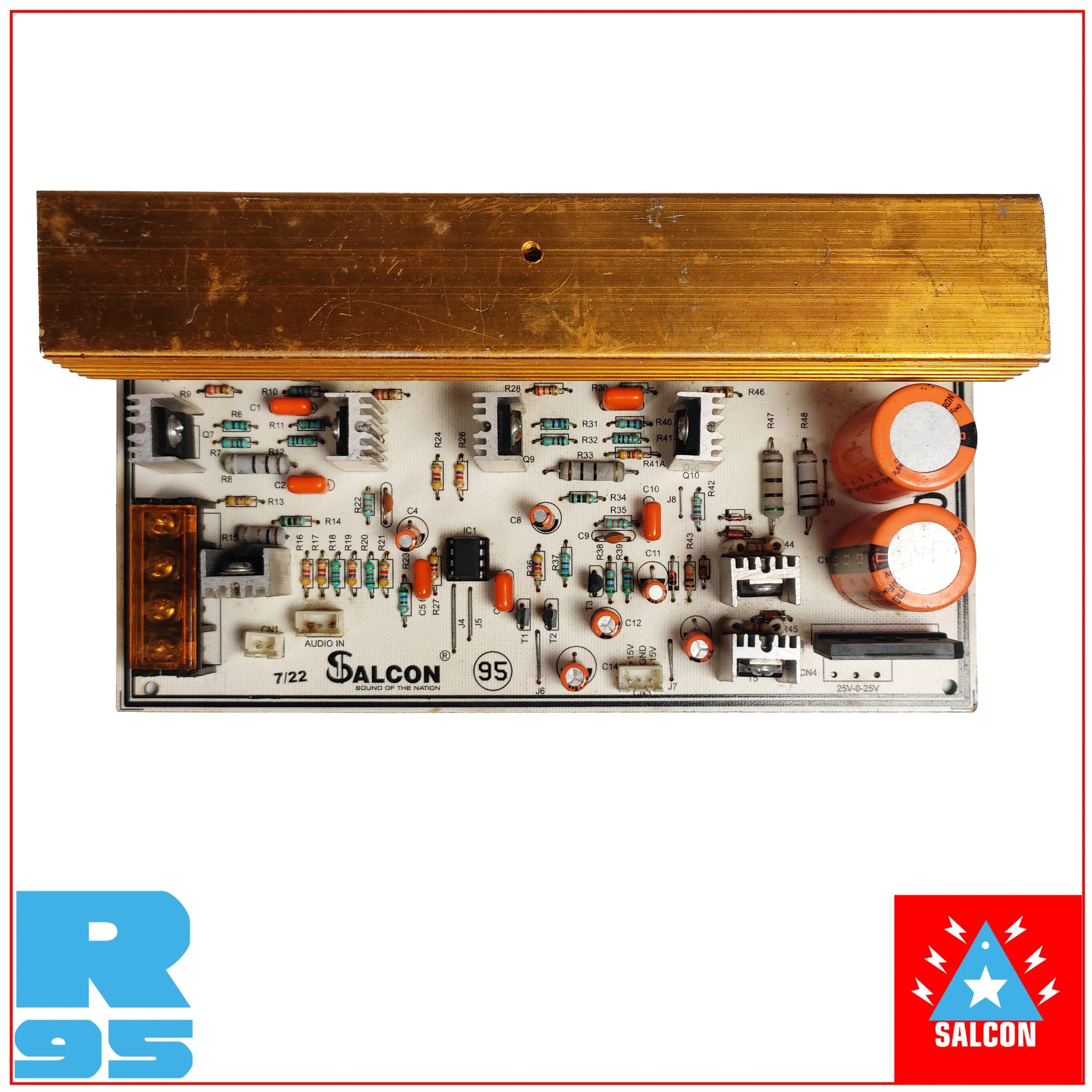

Salcon 200w Gold Stereo Pro Amplifier Board (117)
-
Pick up from the Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
-
DHL Courier delivery
DHL courier will deliver to the specified address
1-2 Days
From $40
About this item:
- Output: 100w+100w RMSÂ
- Type: Stereo
- Input: 24-0-24v to 30-0-30v AC
- Item Dimensions: 12.2L x 20.3W x 6H cm.
- Components: Toshiba 5200/1943
- Use: Home Audio
- Easy to install
₹1,599.00
Description
Salcon 200W GOLD SERIES. A stereo based power amplifier, This power amplifier Module is created for excellent Home Audio Performance. It is a stereo amp with provision for a pre amp and 5 v input source. Specification: Power Rating (per Channel) =100 W RMS@4 ohm @+-/-45VDC, Distortion=0.1% at Max RMS Output, Transformer Required=24-0-24VAC(Minimum), Frequency Response=15 Hz -25KHz +/-0.5Db, Input Impedence=68K, Component – Mosfet/ Transistor, 2sc5200,2sa1943, Frequency response-20hzto 20000hz. This Audio amplifier circuit delivers up to 200 w of top class quality for loudspeaker from 4 ohms to 16 ohms. operating voltage 30-0-30 max-7 amp, Transistor- BDX 54 c Bipolar (BJT)transistor PNP -Trans Darlington PNP 100v 8A60000 Mw Pin-3 -220 AB tube- Capacitor-Keltron4700 uf 50 V Electrolytic Capacitor- Frequency-50-60 Hz, 101 K 1 Kv Ceramic Capacitor (high voltage capacitor) Voltage- 30-0-30 DC Voltage-7 Ampere- Heat sink -A Big golden heat-sink
